Single Minute Exchange of Die EPS Shape Moulding Machine

Single Minute Exchange of Die EPS Shape Moulding Machine

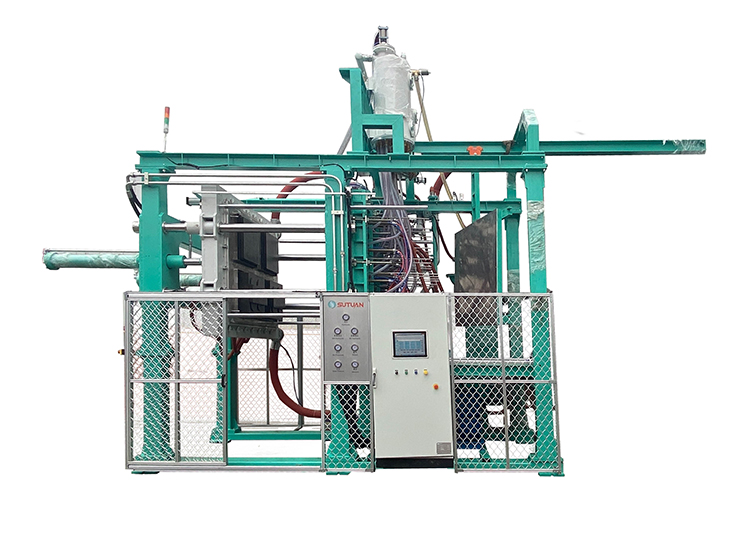

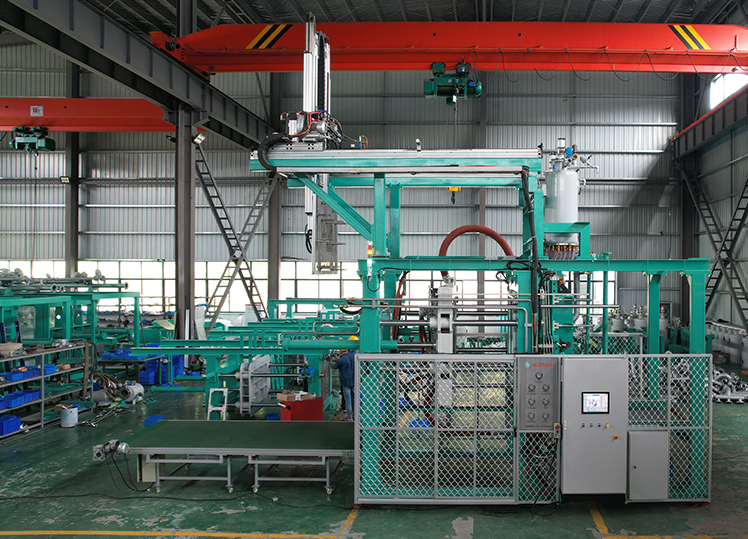

Single Minute Exchange of Die Styrofoam Shape Moulding Machine has improvement in both control system and design. It achieves one key to change the mould in 5 minutes and the optional robotic arm can collect and stack products. Based on Italian prototype EPS shape moulding machine, we have developed it with SUTUAN technology to get our own EPS shaping machine.

SPECIFICATION MOULD CHANGING PRODUCT PICK UP MACHINE STRUCTURE CONTROL SYSTEM FEATURES MANUFACTURING SERVICE PRODUCTION PROCESS

SPECIFICATION

Machine Type			One-Touch Mould Change Series EPS Shape Moulding Machine
Model			ST1214SQW	ST1417SQW	ST1915SQW
Data		unit	ST1214SQW	ST1417SQW	ST1915SQW
Overall		mm	536333104852	536336105152	536337105352
Mould size		mm	800*1300	1200*1400	1500*1900
Product high		mm	350	350	350
Move Distance		mm	1200	1200	1200
Rod	Diameter	mm	80	80	100
Rod	Quantity	pcs	4	4	4
Oil	Diameter	mm	125	150	150
	Distance	mm	1200	1200	1200
	Force	bar	29437	42390	42390
Hopper	Capacity	L	145	145	145
Hopper	Quantity	pcs	2	2	2
Steam	Machine Inlet	DN	100	100	100
	Mould Inlet	DN	50*2	50*2	50*2
	Pressure	bar	6	6	6
	Consumption	Kg	4~5	4~5	4~5
Cooling	Machine Inlet	DN	80	80	80
	Mould Inlet	DN	50	50	50
	Pressure	bar	4	4	4
	Consumption	Kg	0~6.28	0~6.28	0~6.28
Vacuum	Connector		100	100	100
Vacuum	Drainage	L/h	100	100	100
Air	Low	DN	65	65	65
	Low	bar	4	4	4
	High	DN	50	50	50
	High	bar	6	6	6
	Consumption	m³	0.3~0.6	0.3~0.6	0.3~0.6
Hydraulic	Motor	Kw	7.5	11	11
Hydraulic	Capacity	L	400	400	400

MOULD CHANGING

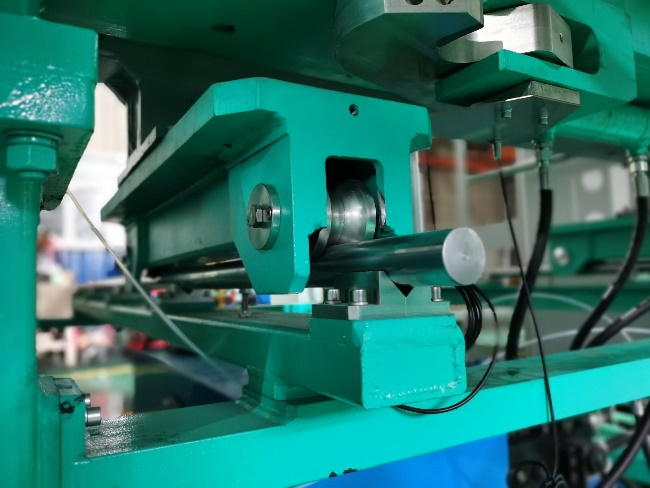

Open framework design, advanced auto rod guide and fix system. Greatly reduces machine stop period for box making, truly realizes SMED (Single Minute Exchange of Die). Mould Change Time < 5min

PRODUCT PICK UP

Pre-prepare transfer materialsfor multi-layers steaming. (Eg: Structure products & under floor board with HIPS film coating, or plastic inserts for ICF)

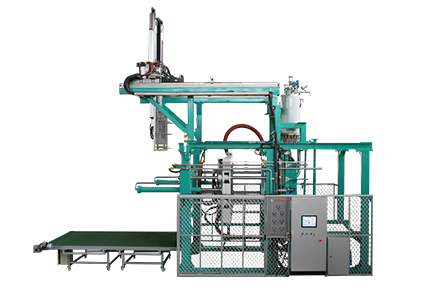

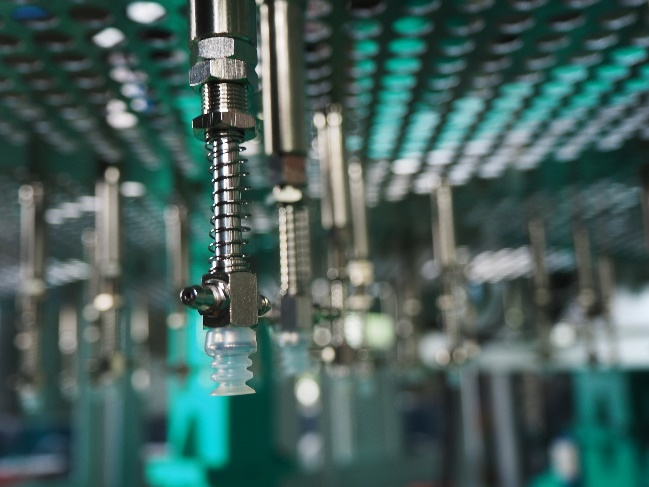

Collect & Stack products

MACHINE STRUCTURE

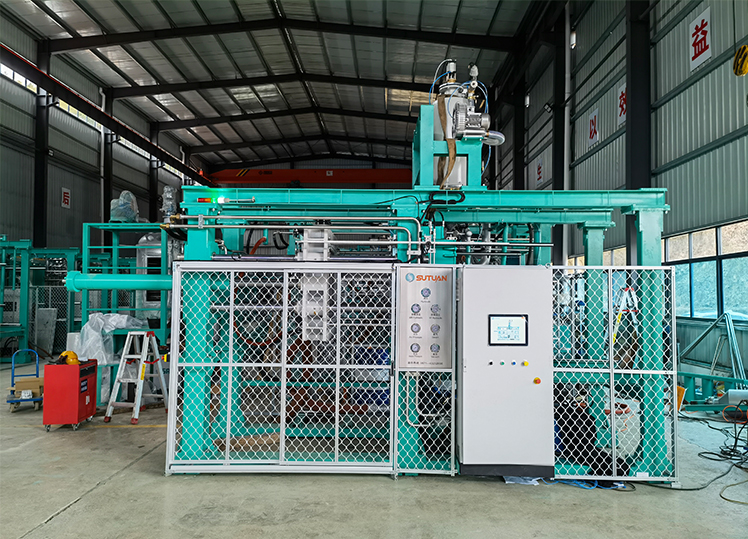

All frames are welded onto strong rectangle tubes which are process- ed by heat treatment to prevent the deformation of the mould panel.

Then, all frames need sand blast- ing treatment to get rust prevention. Anti-corrosive primer and finishing coat ensure anticorrosion performance and lengthen foam machine’s working life.

CONTROL SYSTEM

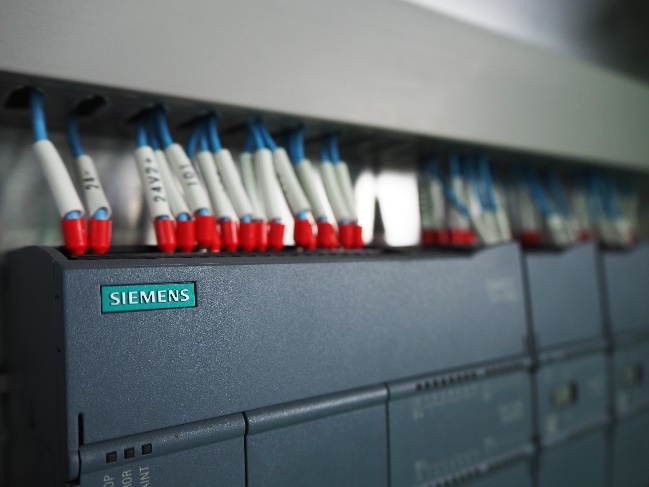

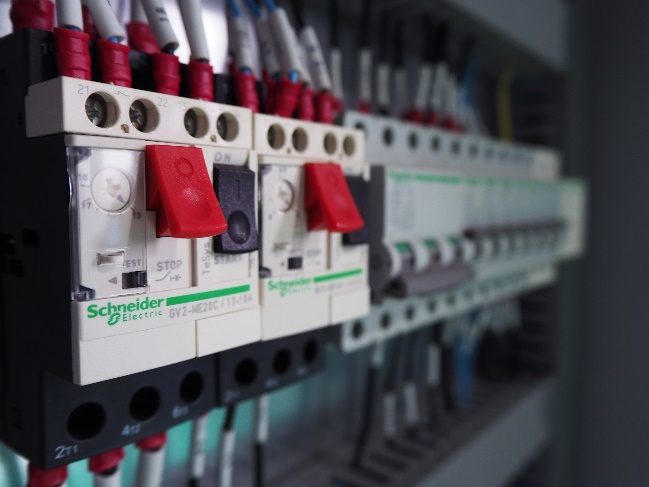

SIEMENS PLC

Industrial Touch Screen

WIFI Support

Remote Control

Long-distance Balance Valve

Protection Alarm System

Digital Parameter Display

Fault Detection Error Alarm

Multi-state Indicator Light

FEATURES

Multiple PID Valve

German Gauge Pipe System

Germany GEMU Valve System

Single Valve Locator

Digital Proportional Control

Mainly Vacuum Cooling

Vertical Vacuum Cooling Water Spray

Air and Water Separator

MANUFACTURING

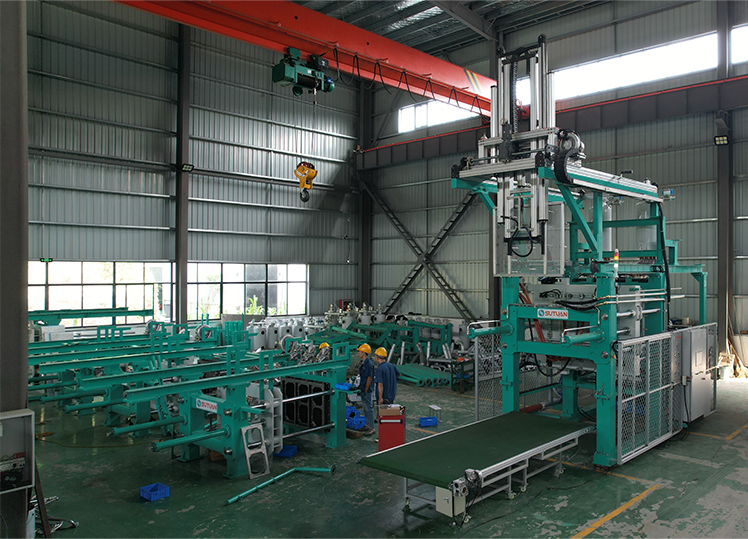

Our factory is located in the Xindeng, Hangzhou.

Styrofoam Machine’s Anti-rust Processing

We focused on top quality shape mold- ing machine and other foam equipment for over 20 years in China.

SERVICE

Intelligent Big Data Management & Control System

Remote Monitoring: operate the re- mote computer through the network.

Fault Feedback: compare deviations
between system behavior and expect- ed behavior.

Remote Maintenance: the engineer or manager connects to the target mach- ine over the network and maintains the remote system locally.

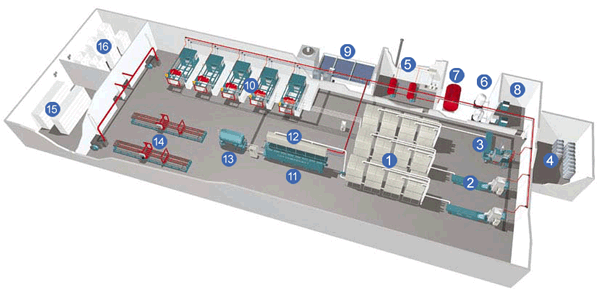

PRODUCTION PROCESS

Processing of EPS Machine
