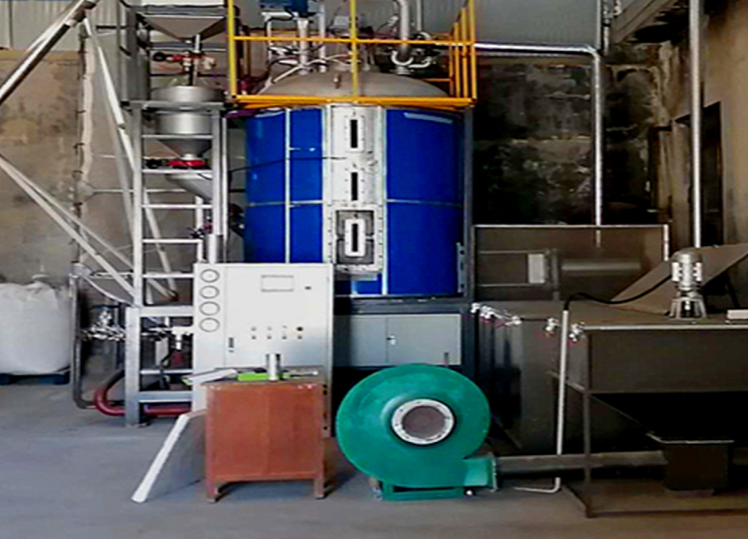

We manufacture our styrofoam expander machine with the principle of high quality, high efficiency. The original particles which produced by this machine are uniform and the foam has good fluidity. Even more, there is no bad smell when pre-forming and molding and the EPS pre-expander meets the food-grade requirements and can safely contact daily necessities. Finally, the cells are even and fine, and the appearance of the product is bright and flat.
| Machine Type | EPS INTERMITTENT PRE-EXPANDER | |||||||
| Model | unit | LF-YF-1100 | LF-YF-1300 | LF-YF-1500 | ||||
| Data | ||||||||
| Overall Size | mm | 2000*2200*4250 | 7400*3200*4800 | 2200*2500*5500 | ||||
| weight | kg | 2500 | 4800 | 3500 | ||||
| steam consumption | kg/cycle | 5~8 | 8~12 | 9~13 | ||||
| air consumption | m³/cycle | 1~2 | 0.6~0.9 | 1.5~2.5 | ||||
| Installed power | kw | 19.5 | 24.92 | 25.5 | ||||
| Density range | 10-38g/l | 12-30g/l | 4-35g/l | |||||
| Capacity (approx) | 12g/l | 200-250kg/h | 12g/l | 550-600kg/h | 12g/l | 520-650kg/h | ||
| 15g/l | 300-320kg/h | 15g/l | 700-800kg/h | 15g/l | 750-850kg/h | |||
| 20g/l | 400-430kg/h | 20g/l | 900-1100kg/h | 20g/l | 1000-1100kg/h | |||
| 30g/l | 500-550kg/h | 30g/l | 1100-1200kg/h | 30g/l | 1200-1400g/h | |||
| Barrel body | diameter | mm | 1100 | 1300 | 1500 | |||
| height | mm | 1500 | 2250 | 2250 | ||||
| volume | m³ | 1.4 | 3.3 | 4.5 | ||||
| steam | machine Inlet | DN | DN50 | DN65 | DN50 | |||
| pressure | mpa | 0.4~0.6 | 0.4~0.7 | 0.4~0.7 | ||||
| compressed air | Inlet size | DN | DN25 | DN40 | DN40 | |||
| pressure | mpa | 0.4~0.8 | 0.4~0.8 | 0.4~0.8 | ||||
| sewage | Fan port | mm | DN80 | DN100 | DN100 | |||
| Sewage outlet | mm | DN80 | DN100 | DN80 | ||||
| Agitator motor power | kw | 4 | 7.5 | |||||
| Tolerance | <±3% | <±3% | <±5% | |||||
